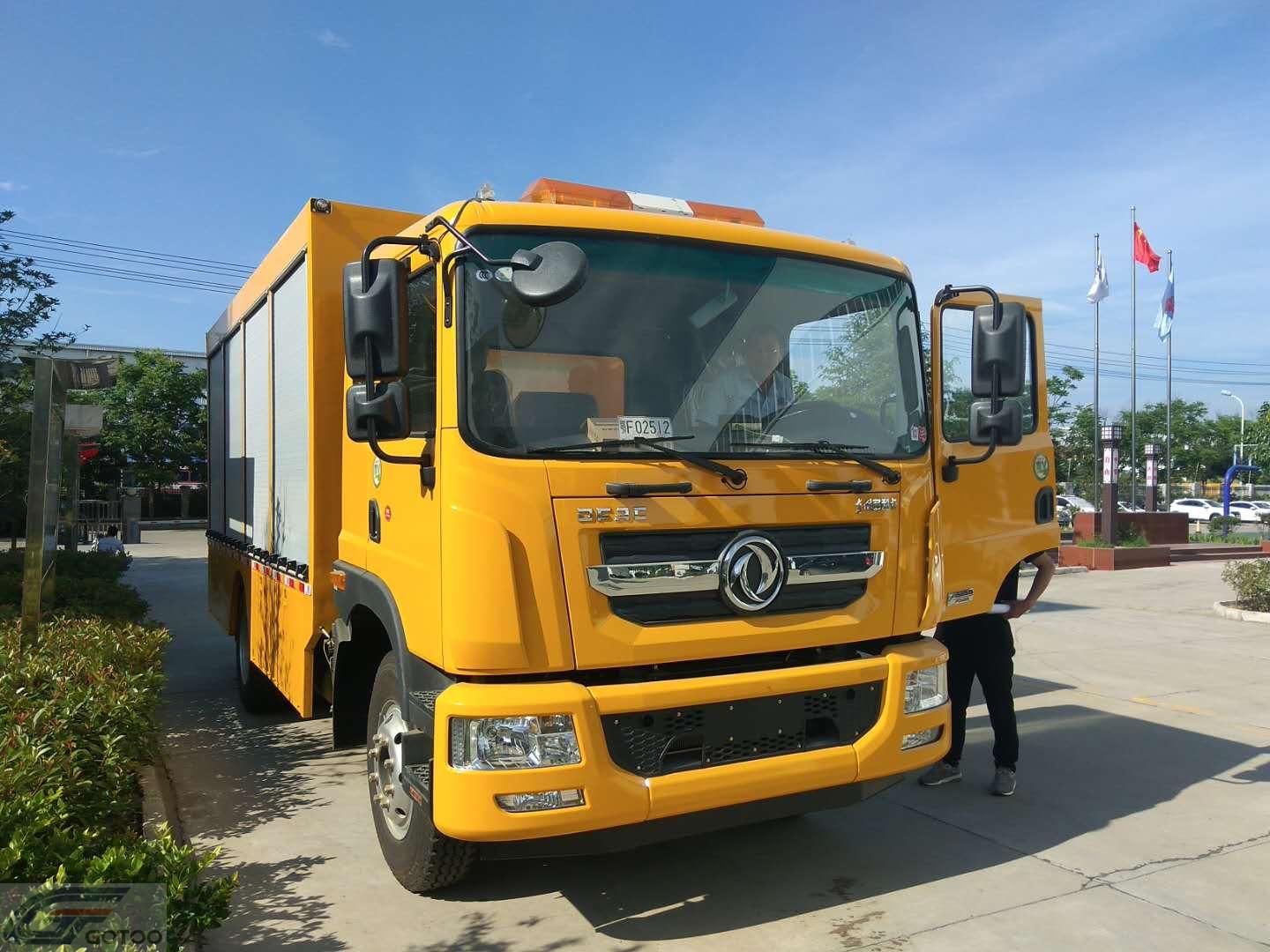

The rescue tool container truck designed by GOTOO is a special rescue vehicle specially used in the field of rail transit. It can provide various types of rescue tools and equipment in an efficient, safe and timely manner in the event of an accident in rail transit vehicles and related areas to ensure efficient rescue. Maximum assurance of personnel and facility losses is minimized.
Rescue Tool Container Truck Features
1. There are 4 aluminum alloy rolling shutters on both sides for easy access to the tools from both sides.

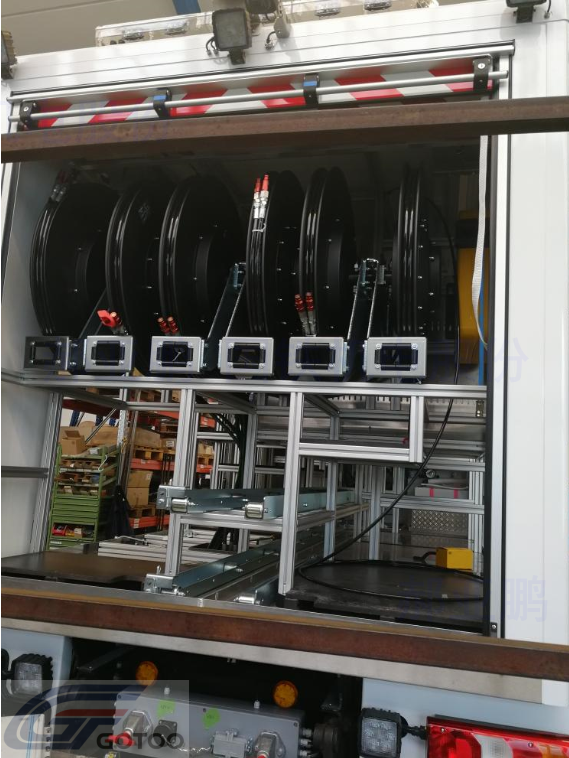

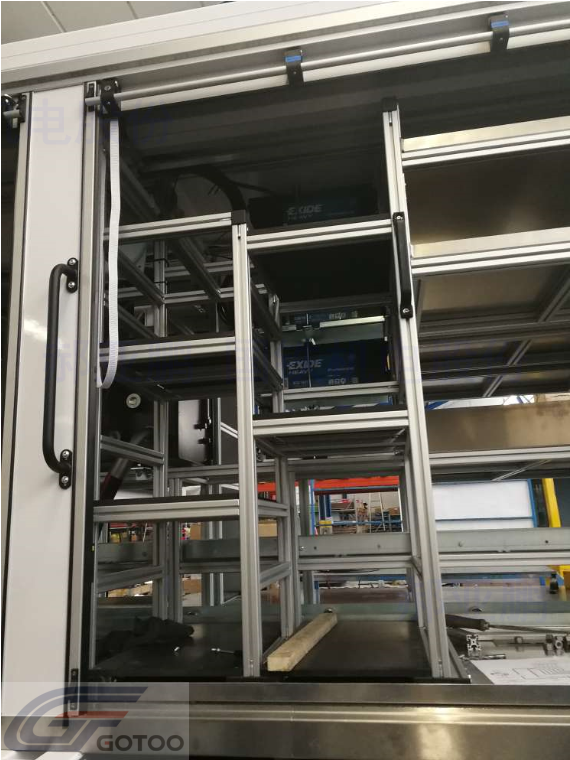

2. There are aluminum alloy shelves in the box to store different tools.
3. The rear end of the car has a hydraulic tail plate for easy removal of heavier tools from the rear end.
4. There is a cylinder smoke alarm in the box, 4 lights.
5. The bottom of the rear part of the cabinet is equipped with fluent strips, which is convenient for long and heavy tools to be taken manually.
6. The roof has a long row of warning lights.
Vehicle Technical Information
|
Vehicle name: |
Rescue Special Tool Container Truck |
|
|
Overall dimensions： |
L*W*H:7580X2440X3300mm |
|
|
Cargo dimension:（mm） |
L*W*H::5100X2440X3100mm |
|
|
Total weight： |
15700kg |
|
|
Loading tool weight： |
4205kg |
|
|
Unloaded vehicle weight(not include tool and passenger)： |
11300Kg |
|
|
Fuel type： |
Diesel |
|
|
Maximum speed：（Km/h) |
90 |
|
|
Number of axes: |
2 |
|
|
Wheelbase: |
3950 |
|
|
Drive form: |
2X4 |
|
|
Swept volume: |
5900 |
|
|
Emission Standards: |
GB/17691-2005 China V GB3847-2005 |
|
|
Number of leaf springs: |
8/10+7 |
|
|
Vehicle assembly configuration: (Name) |
1. Chassis assembly |
|
